Universal resting shell/orthosis for hand & wrist (tenosynovitis)
INDICATION
Fixation or immobilisation of the wrist, hand and long fingers after injuries (e.g. distorsion), surgery and fixation with plaster of Paris. Conservative treatment in tendonitis, inflammation and degenerative diseases of the wrist, hand and long fingers even as resting splint. Rehabilitation phase after hand surgery.
FLEXIBLE
LIGHT
PERFORATED
TRANSPARENT
WASHABLE
Product information video
This English-language video presents fitting of the Chrisofix® Universal resting shell/orthosis for hand & wrist (tenosynovitis). Read it together with the indications and fitting information on this page. Your healthcare professional determines the appropriate use.
Application and adjusting
The ready to adjust Chrisofix® orthoses have to be adjusted directly on the injured/diseased body part. The rough adjustment (bending) has to be performed on a non-injured limb of similar size. Fine adjustments, readjustments (e.g. after soft tissue swelling is reduced) can be made without removing the orthesis.
- Shape the orthesis on the not injured hand, wrist and forearm.
- Set the wrist into the required position.
- Put the arm with the palmar side into the preshaped orthosis.
- Adjust the orthosis with gentle pressure to the hand and forearm.
- Fasten the bandages over the fingers, hand and forearm.
To remove the orthosis, it is not necessary to open the strap on back of the hand; the hand can simply be pulled out from and later shifted back into the fixation. Frequent bending and stretching of the orthosis can damage its stability;these must be restricted to the necessary minimum.
Product Details
PREMIUM FORTE (WITH LINER)
XXXS (children)
Measurement
Width of palm
< 5 cm
REF / Order Number
711 111 176
XXS (children large)
Measurement
Width of palm
5 – 5.5 cm
REF / Order Number
712 111 176
XS (extra small)
Measurement
Width of palm
5.5-6 cm
REF / Order Number
713 111 176
S (small)
Measurement
Width of palm
6-8 cm
REF / Order Number
714 111 176
M (medium)
Measurement
Width of palm
8-9 cm
REF / Order Number
716 111 176
L (large)
Measurement
Width of palm
9 < cm
REF / Order Number
718 111 176
Product Details
SHELL
XXXS (children)
Measurement
Width of palm
< 5 cm
REF / Order Number
711 111 146
XXS (children large)
Measurement
Width of palm
5-5.5 cm
REF / Order Number
712 111 146
XS (extra small)
Measurement
Width of palm
5.5-6 cm
REF / Order Number
713 111 146
S (small)
Measurement
Width of palm
6-8 cm
REF / Order Number
714 111 146
M (medium)
Measurement
Width of palm
8-9 cm
REF / Order Number
716 111 146
L (large)
Measurement
Width of palm
9 < cm
REF / Order Number
718 111 146
Material
Polyethylene (PE) foam, polyamide (PA) velour, cotton, corrugated and perforated aluminium (EN AW-1050A).
Related products
Shell/orthosis for paresis (wrist & hand & thumb)
Related support for thumb and saddle-joint stabilisation.
View Shell/orthosis for paresis (wrist & hand & thumb) →

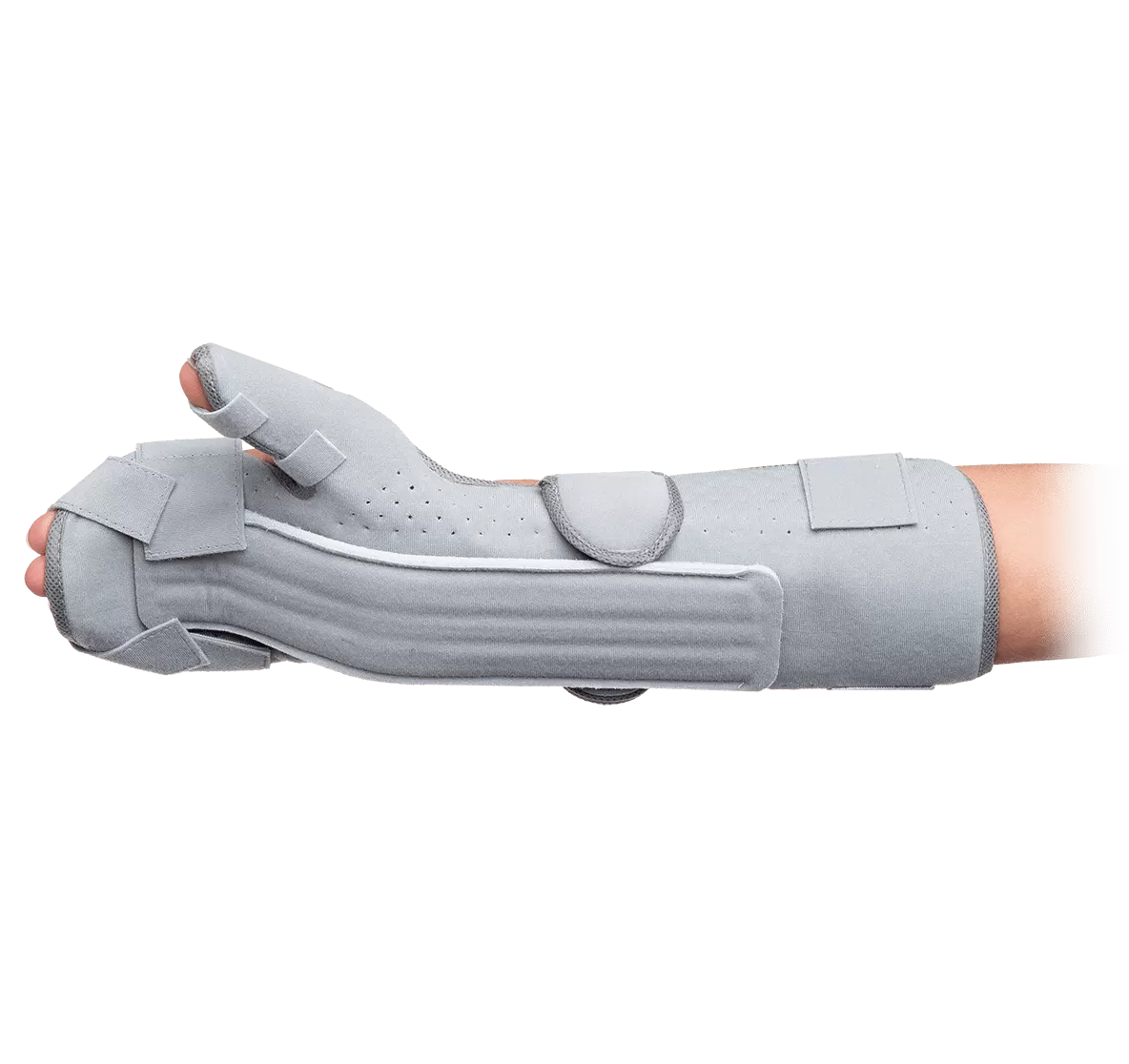

Shell/orthosis for spasticity (hand & wrist & thumb)
Related support for thumb and saddle-joint stabilisation.
View Shell/orthosis for spasticity (hand & wrist & thumb) →
Volar wrist orthosis – disinfectable shell
Reusable support for clinical and rehabilitation environments.
View Volar wrist orthosis – disinfectable shell →Choosing and using this product
Selection starts with the condition being treated and the required support. The product name alone does not determine whether it is suitable for you. Ask the treating healthcare professional to match the model, size and application to your care.
How is the right size selected?
Use the measurement and size information shown for this exact model. Size labels are not interchangeable between products. The hand or limb side, where specified, also matters. Ask a healthcare professional to check the fit.
Who decides the application and duration?
The treating healthcare professional determines the application, position and duration for the individual condition. An application illustration or video explains the product; it does not replace individual fitting or professional care.
Can all Chrisofix® products be cleaned in the same way?
No. Follow the material, cleaning and reuse information for the exact product version. A washable, disinfectable or single-use version is not automatically interchangeable with another version. If the supplied product differs from this page, ask Chrisofix® or the supplying professional to identify it.
How does this model compare with related orthoses?
Compare the stated indications below. Related products can support different areas or serve different purposes; they are not automatically interchangeable. Ask your healthcare professional which model suits your treatment.
Universal resting shell/orthosis for hand & wrist (tenosynovitis)
Information on the product page: Fixation or immobilisation of the wrist, hand and long fingers after injuries (e.g. distorsion), surgery and fixation with plaster of Paris. Conservative treatment in tendonitis, inflammation and degenerative diseases of the wrist, hand and long fingers even as resting splint. Rehabilitation phase after hand surgery.
Universal resting shell for hand & wrist (disinfectable shell)
Information on the product page: See the product details for its intended use and available sizes.
